Rubber Sheets



We can supply a wide range of rubber sheeting and rubber matting, like general purpose SBR/NR rubber sheeting, CR rubber sheeting, NBR rubber sheeting, Pure gum sheeting, Silicon, Viton, and many kinds of rubber matting, such as rib matting, stud matting with different grades, colors and patterns.



General Purpose Rubber Sheet

Mainly used as sealing gasket, sealing strip, it also could be put on the workbench or used as rubber matting.

Material Selection: SBR/NR

Tensile strength: 2 – 8 Mpa

Hardenss: 50 – 80 Shore A

Elongation: 150% – 350%

Thickness: 1mm – 50mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth or cloth impression



Nitrile (NBR) Rubber Sheet

With Excellent resistance to oils, solvents and fuels. Resistant to a broader range of aromatic hydrocarbons than neoprene. Nitrile may be blended with SBR rubber to achieve an economically priced sheet or moderately oil resistant applications. Temperature range: -30°C to +120°C, with the possibility of reaching -40°C.

Tensile strength: 3 – 12.5 Mpa

Hardenss: 50 – 80 Shore A

Elongation: 150% – 450%

Thickness: 1mm – 50mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth or cloth impression





Neoprene(CR) Rubber Sheet

Made from Neoprene rubber, it can also be blended with SBR and CR compound,Excellent mechanical and abrasion properties even without reinforcing fillers.Good resistance to fire, oil, acid & alkali, ozone, abrasion and heat.

Tensile strength: 3 – 13 Mpa

Hardenss: 50 – 70 Shore A

Elongation: 200% – 300%

Thickness: 1mm – 50mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth or cloth impression





EPDM Rubber Sheet

Excellent resistance to ozone, sunlight and oxygen.

Excellent resistance to acid, alkali and ketones.

Excellent inherent high and low temperature ranges. Typically -45°C to +120°C for standard compounds.

Tensile strength: 3 – 5 Mpa

Hardenss: 50 – 70 Shore A

Elongation: 200% – 300%

Thickness: 1mm – 50mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth or cloth impression

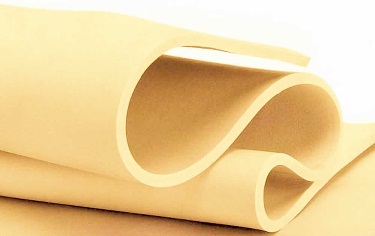

Pure Gum/Natural Gum Sheet

Good gasket material due to excellent physical properties such as resilience, tear strength and wear resistance.Natural rubber is used effectively as sand and shot blast curtain material because of it's high abrasion resistance and resilience.

Tensile strength: 12 – 22 Mpa

Hardenss: 40 – 70 Shore A

Elongation: 500% – 600%

Thickness: 1mm – 50mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth or cloth impression

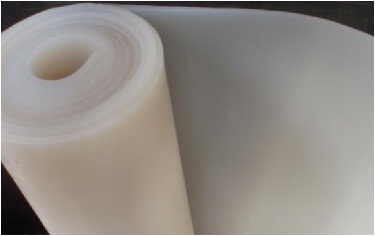

Silicon Rubber Sheet

Silicon rubber is good on surface, high stability and durable.Excellent in softness, elasticity, insulation, air tightness, ozone resistance, weather fastness and alcohol, animal/plant oil and polar organic resistance.Can be widely used for membrane press of solar energy lamination machine, wooden and glass industry.

Tensile strength: 6 – 11 Mpa

Hardenss: 50 – 60 Shore A

Elongation: 350% – 550%

Thickness: 1mm – 10mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth



Viton Rubber Sheet

Viton is serviceable in continuous heat of up to 250°C and intermittent heat of up to 300°C.Satisfactory resistance to low temperatures of typically -20°C and -40°C by use of special grades.Good flame resistance and are usually self extinguishing upon removal of flame source.Have excellent resistance to oxygen, ozone and natural weathering.

Tensile strength: 7 Mpa

Hardenss: 75 Shore A

Elongation: 150%

Thickness: 1mm – 50mm

Width: 0.5m – 2m

Length: 1m – 30m

Surface: smooth

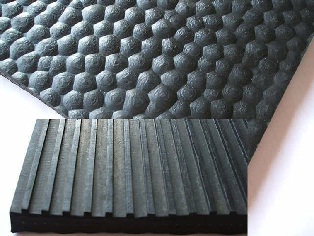

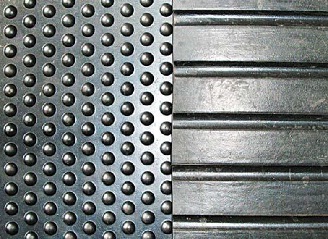

Rubber Flooring

Fine Rib Flooring

Corrugated Flooring

Flat Rib Flooring

Thick Rib Flooring

Big Stud Flooring

Small Stud Flooring

Checker Flooring

Rhomboid Flooring

Pyramid Flooring

Rubber Matting

Anti Fatigue Rubber Matting

Cow Matting 01

Cow Matting 02

Cow Matting 03



Skirting Rubber Sheet

Skirting rubber is a general purpose rubber used mainly in the mining industry as a side skirt on conveyor belt systems to prevent the materials falling down. It is available in full width slabs up to 2000 mm wide and also pre-cut skirting strips.

Hardness can be made from 40-60 shore A

Sandwich Skirting Rubber is a specialised product incorporating two hardness of rubber in one product,Its top and bottm layer are high abrasion and cut resistance for handling mining material and its inner layer is to give support.



Pulley Lagging

Pulley Laggings, with specially developed rubber materials and their patterned surfaces have proved to be very effective in water shedding, preventing material build up and controlling belt slippage.Diamond Profile black lagging is ideal for small diameter pulleys on systems with black conveyor belt.
